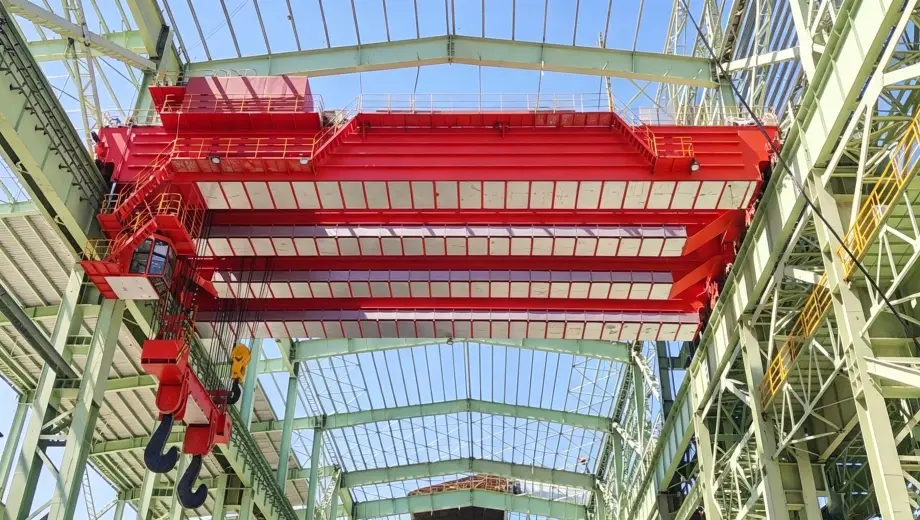

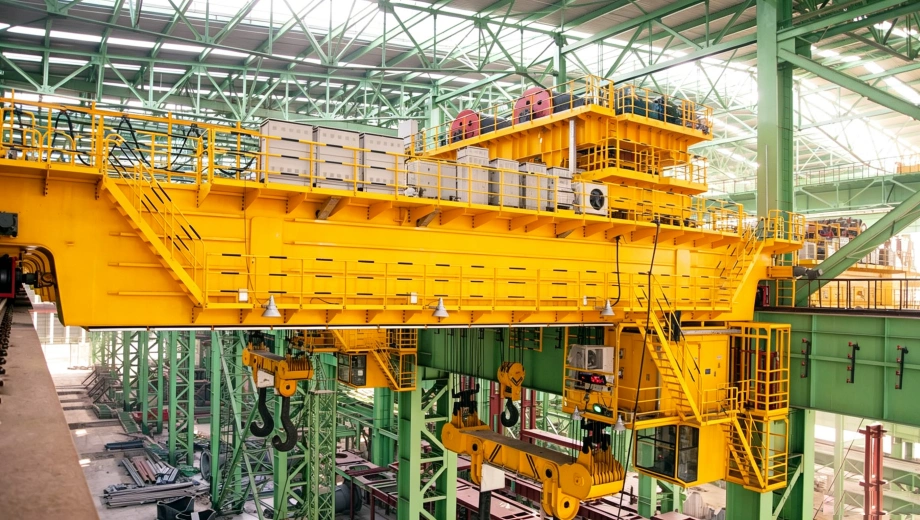

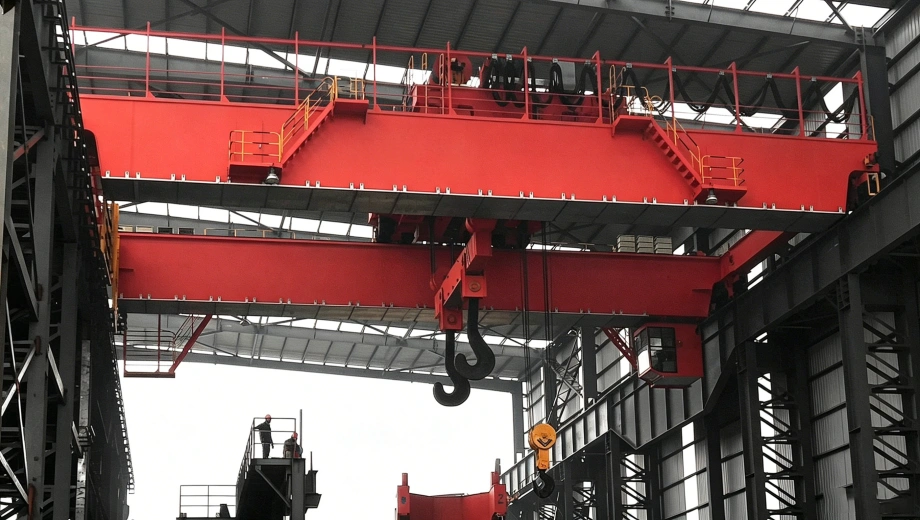

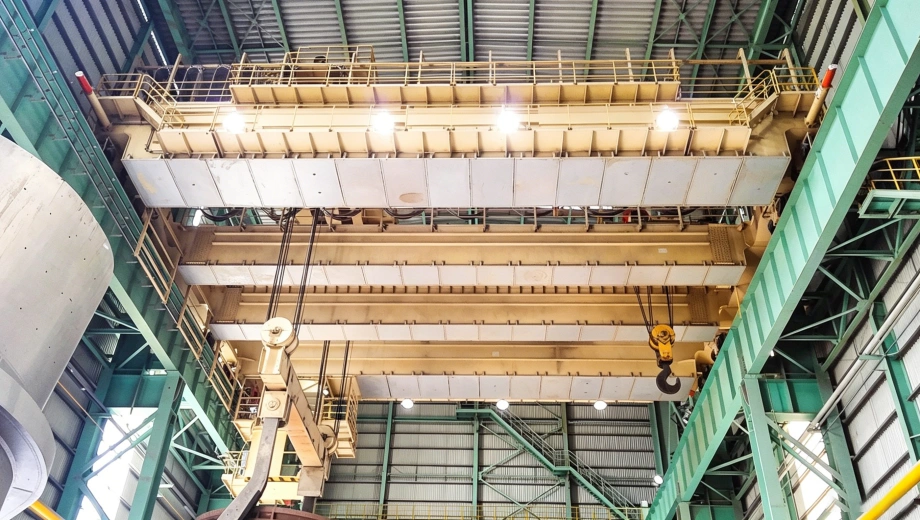

Casting Crane
Authentication mark:
Casting Crane is applied in metallurgy and foundry industries.
Capacity:
5t,10t,20t,30t,50t,100t,200t,300t
Lifting Height:
28m
Span:
31.5m
Voltage/Hertz:
380V
Working Class:
A7-A8
Get A Free Quote
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
Introduction
Casting Crane is a professional heavy-duty metallurgical special crane dedicated to molten steel handling and casting production processes. It adopts ultra-rigid reinforced double box girder structure with high structural strength, excellent stability and strong anti-fatigue performance. The whole machine is designed with high-standard high-temperature resistance, heat radiation protection and overload protection structure. Equipped with dedicated ladle lifting mechanism, precise buffer system and stable variable frequency driving system, it can complete heavy-load lifting, horizontal transportation and accurate pouring of high-temperature molten steel ladles. Adapted to 24-hour continuous high-intensity operation in harsh casting workshops, it serves as the core safety guarantee equipment for steelmaking and continuous casting production lines.
Application Scenario
Casting Crane is mainly applied in high-temperature metallurgical production workshops and continuous casting operation sites. It is widely used in steelmaking plants, iron and steel smelting workshops, continuous casting production lines and metallurgical processing bases. It is specially responsible for lifting, transferring and pouring molten steel ladles and molten iron ladles, as well as assisting in furnace opening and material matching operations. It fully adapts to harsh working environments with high temperature, thermal radiation, dust and heavy load, meeting the continuous and stable operation demands of modern metallurgical casting processes.
Advantages
Casting Crane is a professional heavy-duty metallurgical special crane dedicated to molten steel handling and casting production processes. It adopts ultra-rigid reinforced double box girder structure with high structural strength, excellent stability and strong anti-fatigue performance. The whole machine is designed with high-standard high-temperature resistance, heat radiation protection and overload protection structure. Equipped with dedicated ladle lifting mechanism, precise buffer system and stable variable frequency driving system, it can complete heavy-load lifting, horizontal transportation and accurate pouring of high-temperature molten steel ladles. Adapted to 24-hour continuous high-intensity operation in harsh casting workshops, it serves as the core safety guarantee equipment for steelmaking and continuous casting production lines.

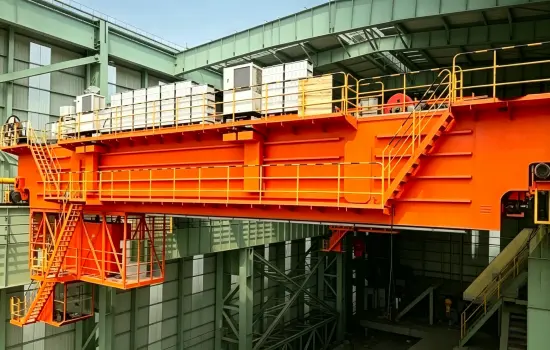

Structural Diagram And Parameter Table
| Rated Loading Capacity | 5t,10t,20t,30t,50t,100t,200t,300t | Max. Lifting Height | 28m |
| Span | 31.5m | Power Source | 380V |
| Work Duty | A7-A8 | Place of Origin | Henan, China |
| Product name | Casting Crane | Color | Customer Request |
CORE ADVANTAGES
1
HIGH QUALITY & STABLE PERFORMANCE
Built with premium materials and strict quality control, ensuring smooth and consistent operation even under heavy working conditions.
2
LONG SERVICE LIFE & LOW MAINTENANCE
Durable structural design reduces wear and tear, delivering long service life with minimal maintenance requirements.
3
HIGH EFFICIENCY & ENERGY SAVING
Optimized driving system ensures fast, responsive lifting while lowering energy consumption and operating costs.
4
HIGH SAFETY STANDARD & DURABLE STRUCTURE
Equipped with multiple safety devices and a rugged structure, providing reliable protection and long‑term durability.
5
CUSTOM DESIGN & FLEXIBLE SOLUTIONS
Fully customizable to different tonnages and working conditions, offering flexible lifting solutions for shipyards and marinas.
