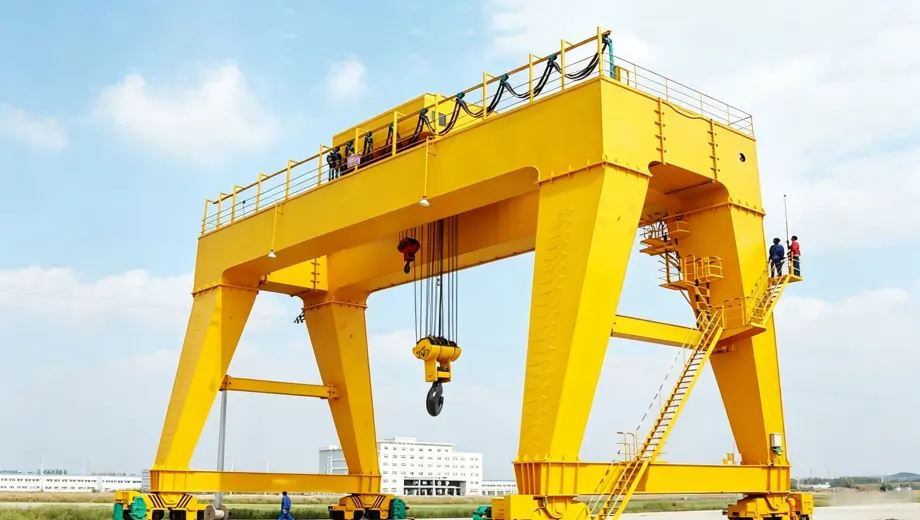

MG Double Girder Gantry Crane
Authentication mark:
MG Double Girder Gantry Crane suits outdoor yards and heavy-duty cargo lifting.
Capacity:
10 Ton, 20 Ton, 100 ton, 50 Ton, 80 Ton, 200 Ton, 400 Ton
Lifting Height:
6 m, 10 m, 16 m, 12 m, Customized
Span:
18-35 m
Voltage/Hertz:
Customizable
Working Class:
A5-A6
Get A Free Quote
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
Introduction
MG Double Girder Gantry Crane is a standardized heavy-duty rail travelling gantry crane for outdoor industrial handling. It adopts integral welded double box girder structure with high structural rigidity, strong compression resistance and excellent heavy-load stability. Running on fixed ground rails, the crane is equipped with heavy-duty electric hoist or travelling winch trolley, matched with full frequency conversion control system and complete windproof safety devices. It integrates vertical lifting, trolley cross travelling and whole crane longitudinal travelling functions. Designed for all-weather outdoor cyclic operation, it owns reasonable force structure, stable running performance and long service life, which is mainstream general heavy lifting equipment for outdoor fixed yard operation.
Application Scenario
MG Double Girder Gantry Crane is widely used for medium and heavy load outdoor material handling work. It is suitable for steel stockyards, logistics freight yards, construction sites, stone factories, port auxiliary yards, machinery assembly plants and industrial outdoor storage areas. It is mainly applied for stacking, loading and transferring steel profiles, construction materials, heavy mechanical parts, bulk goods and industrial finished goods. It adapts to outdoor windy, dusty and all-weather working conditions, meeting high-frequency, large-span and heavy-load handling demands of industrial outdoor production.
Advantages
MG Double Girder Gantry Crane has core advantages of strong load capacity, high stability and wide working range. The optimized double girder structure boosts overall bearing capacity and anti-vibration performance, avoiding deflection during heavy cargo lifting. Fixed rail travelling guarantees accurate operation, no offset and high running safety compared with mobile gantry cranes. It supports large span and high lifting height customization, maximizing yard available operating area. Equipped with anti-slip rail clamp, limit protection and emergency stop device, it owns comprehensive outdoor safety performance. The whole machine adopts mature standardized parts, with simple installation, easy maintenance and low daily operating cost. It runs smoothly with low noise, adapts to long-time continuous start-stop work, and delivers higher cost performance for fixed outdoor heavy-load lifting projects.

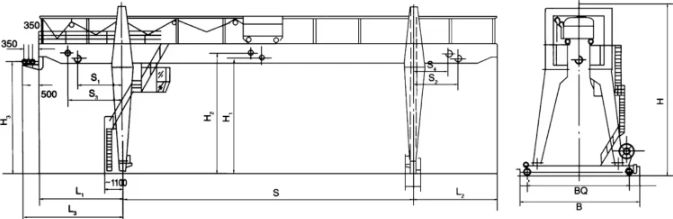

Structural Diagram And Parameter Table
| Rated Loading Capacity | 10 Ton, 20 Ton, 100 ton, 50 Ton, 80 Ton, 200 Ton, 400 Ton | Max. Lifting Height | 6 m, 10 m, 16 m, 12 m, Customized |
| Warranty | 1 Year | Machinery Test Report | Provided |
| Video outgoing-inspection | Provided | Core Components | PLC, Bearing, Engine, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Span | 18-35 m | Place of Origin | Henan, China |
| Weight (KG) | 10582 kg | Application | All |
| Product name | Double Girder Gantry Crane | Lifting mechanism | Electric Winch |
| Control Method | Remote Control + Cabin Control (customized) | Power Source | Customizable |
| Work Duty | A5-A6 | Lifting speed | 5.9-11.3 m/min |
| Advantage | High Performance | Certification | CE ISO |
CORE ADVANTAGES
1
HIGH QUALITY & STABLE PERFORMANCE
Built with premium materials and strict quality control, ensuring smooth and consistent operation even under heavy working conditions.
2
LONG SERVICE LIFE & LOW MAINTENANCE
Durable structural design reduces wear and tear, delivering long service life with minimal maintenance requirements.
3
HIGH EFFICIENCY & ENERGY SAVING
Optimized driving system ensures fast, responsive lifting while lowering energy consumption and operating costs.
4
HIGH SAFETY STANDARD & DURABLE STRUCTURE
Equipped with multiple safety devices and a rugged structure, providing reliable protection and long‑term durability.
5
CUSTOM DESIGN & FLEXIBLE SOLUTIONS
Fully customizable to different tonnages and working conditions, offering flexible lifting solutions for shipyards and marinas.
