Segmented Leg Gantry Crane
Authentication mark:
The following options can be selected:
Lifting capacity:
- 400
Lifting height:
Span:
Voltage/Hertz:
Job level:
- A5
Sling available:
-
Lifting hook
Apply:
The segmented leg gantry crane suitable for use in situations where large cranes cannot enter.
PRODUCT RECOMMENDATION
- Product Overview
- Application Scenario
- Certificate

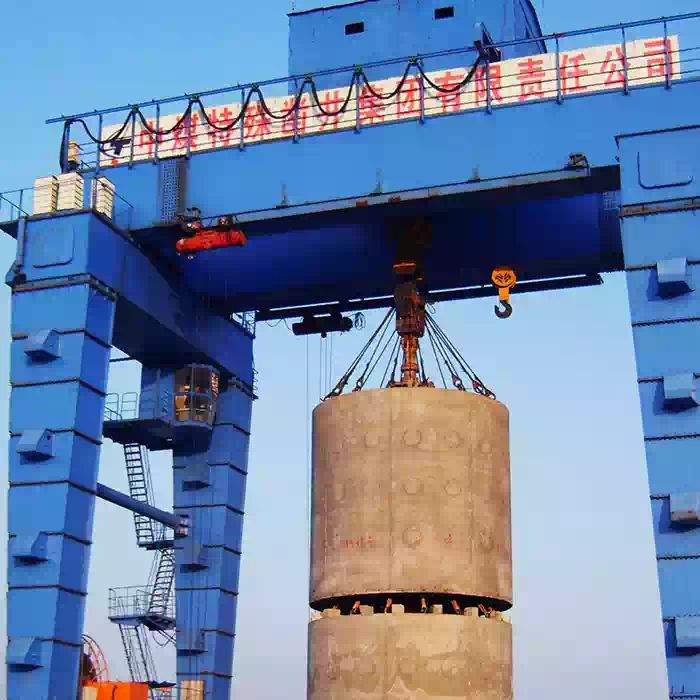

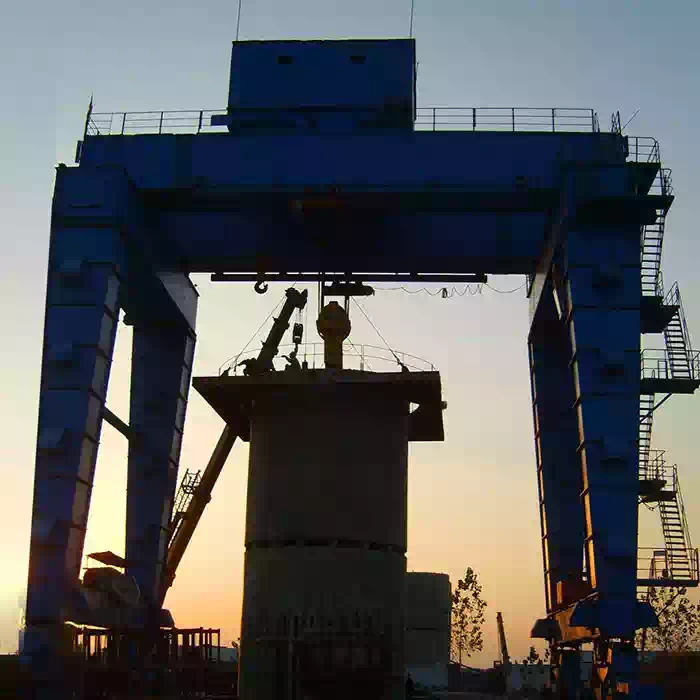

The segmented leg gantry crane bears a resemblance to the U - shaped gantry crane. At first glance, the gantry structure of both appears as a U - shaped gantry, yet they diverge significantly when it comes to the supporting legs. In the case of the segmented leg gantry crane, its leg design is a response to unique working conditions. In certain work environments, large - scale lifting equipment like all - terrain cranes face insurmountable obstacles in accessing the site. This could be due to narrow passages, limited space, or specific site regulations. As a result, the legs of the segmented leg gantry crane are ingeniously crafted into several sections or segments.
Each section of the leg is equipped with a specialized jack - up support mechanism. This design not only allows for greater adaptability to the terrain but also eases the installation process. Once the trolley and the end carriage of the main beam have been meticulously assembled, the initial step in setting up the crane involves using a jack to carefully jack up these components. This elevation provides the necessary clearance to begin connecting the leg sections. Each section of the legs is then sequentially joined together using flanges. The use of flanges ensures a secure and stable connection between the segments, capable of withstanding the substantial loads that the crane will encounter during operation.
