Single Girder Overhead Crane

Authentication mark:

The following options can be selected:

Lifting capacity:

Lifting height:

30m

Span:

31.5m

Voltage/Hertz:

Job level:

Sling available:

Lifting hook

Apply: Warehouse, workshop, and power station, etc.

PRODUCT RECOMMENDATION

Insulation Overhead Crane
Magnet Double Girder Overhead Crane
Low Headroom Single Girder Overhead Crane
Suspension Crane
Hook Overhead Crane
Explosion-proof Overhead Crane QB
Explosion-proof Overhead Crane
Grab Bucket Overhead Crane
LH Electric Hoist Double Girder Overhead Crane
Double Girder Overhead Crane
Clamps Bridge Crane
Wheel Bucket Stacker Reclaimer

Product Overview
Application Scenario
Certificate

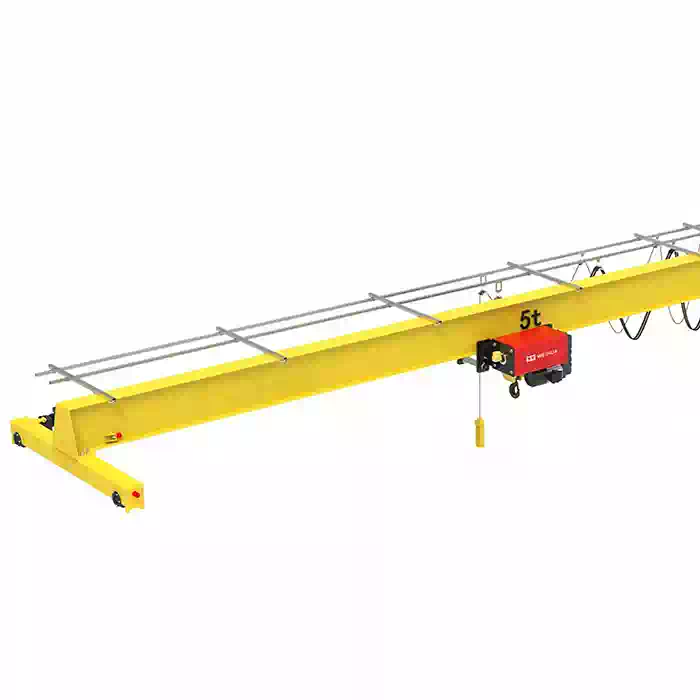

This single girder overhead crane is a new design low clearance crane with Korig new design wire rope hoist as lifting mechanism, which has the feature of good performance, stable running, low consumption and green. 10 ton overhead crane.

Advantage

> Material :Q235

> Frame: One whole type; Strong Steel box type

> Rust remove: Sand blast

> Crane traveling motor: Kuangyuan brand, Soft start type (support customize)

> Main beam box: High technique, one whole type, no welding

> Wheel: Vacuum casting, Inter medium frequency quenching

> Main electrical parts: Schneider brand (international)

After sales service:

1. Warranty: the quality of our cranes is guaranteed for one year. In this period, if any quality problem happens with correct operation, we will send spare parts to our customer free of charge.

2. After warranty, we will supply spare parts at cost prices to our customer.

This single girder overhead crane stands out as a highly versatile and efficient material handling solution, applicable across a wide range of settings, including warehouses, workshops, and power stations.The lifting capacity includes 3 ton, 5 ton, 10 ton, 15 ton, 20 ton, and so on.Eot Crane.

1. Warehouse Applications

Streamlining Goods Storage and Retrieval

In a warehouse environment, the crane plays a pivotal role. It can effortlessly move heavy pallets and large containers, which significantly boosts the productivity of loading and unloading operations. By quickly transporting items between the receiving area and their designated storage spots, it ensures a seamless and efficient inventory management flow.

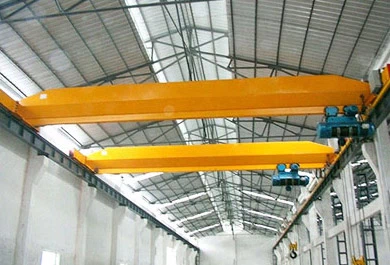

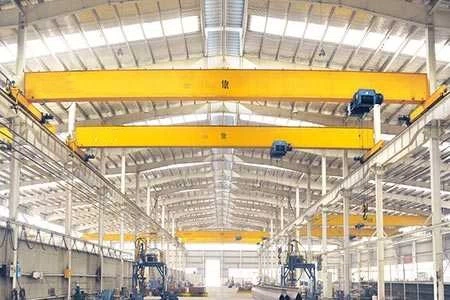

2. Workshop Applications

Supporting Manufacturing Processes

Within a workshop, the single girder overhead crane is essential. During the assembly of complex products, it can precisely position heavy machinery parts. Whether it's for metalworking, where large metal components need to be lifted and placed, or in electronics manufacturing for moving delicate equipment, the crane's lifting capacity and maneuverability meet the diverse needs of different workshops.

3. Power Station Applications

Indispensable for Facility Maintenance and Operation

In power stations, this crane is an invaluable asset. It is deployed for tasks such as handling large generator components during maintenance and installation. Given that power stations deal with massive and heavy equipment, the crane safely and effectively lifts and moves these components, guaranteeing the smooth operation and maintenance of power generation facilities. Its reliability and durability make it ideal for the tough conditions in power stations.
