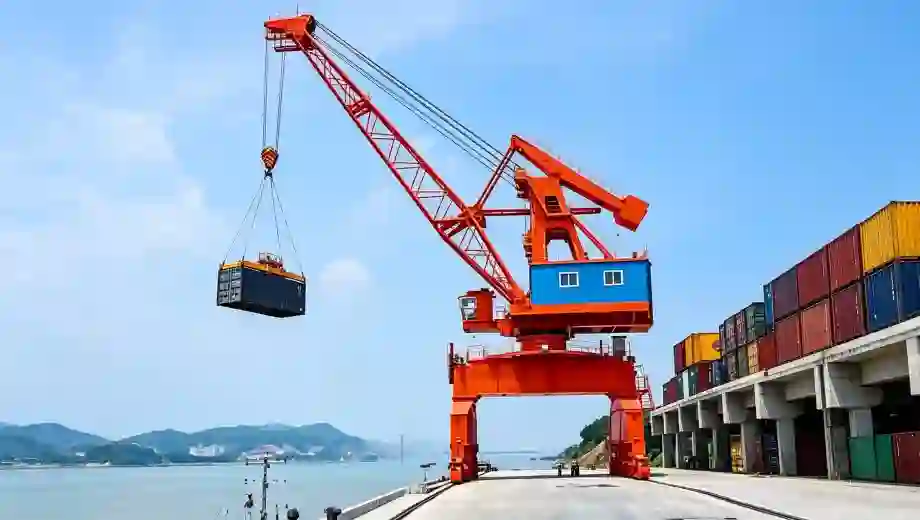

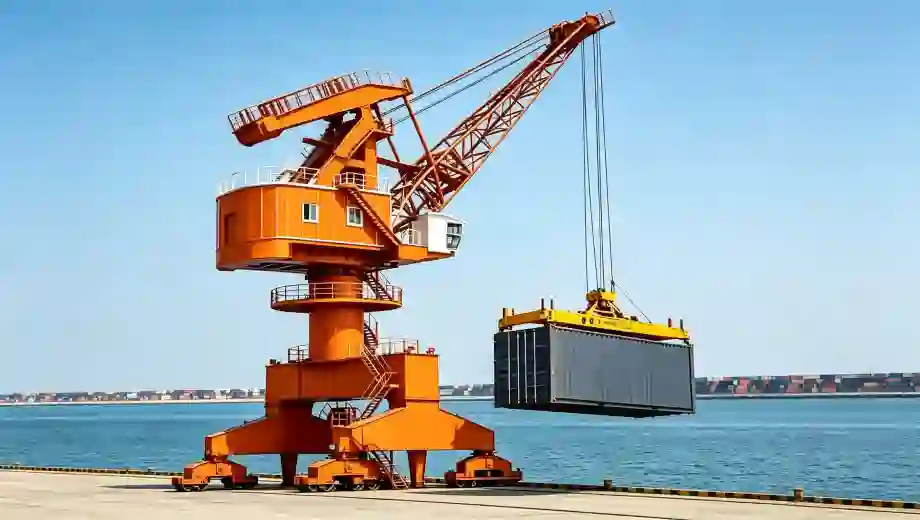

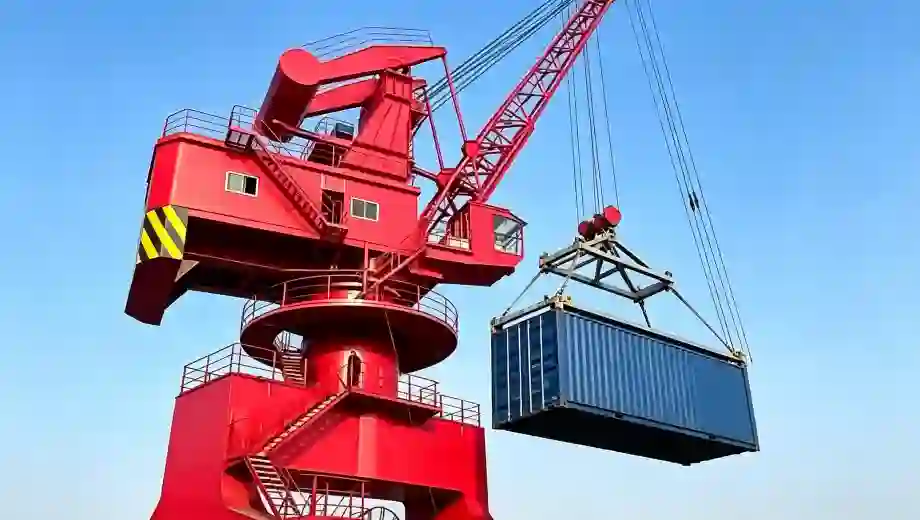

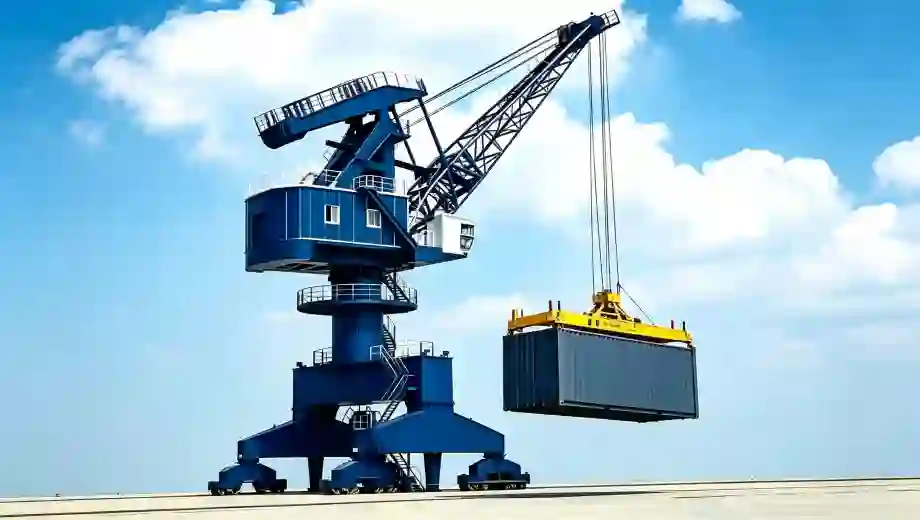

Container Single Boom Portal Crane
Authentication mark:
Container Single Boom Portal Crane is widely used in container terminals, freight yards and port logistics for container handling operations.
Capacity:
40 t, Customizable
Lifting Height:
42 m, Customizable
Span:
10.5 m, Customizable
Voltage/Hertz:
Customizable
Working Class:
A6
Get A Free Quote
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
Introduction
Container Single Boom Portal Crane is a professional port-specific lifting equipment specially designed for container loading, unloading and stacking operations. It adopts optimized single boom cantilever structure and rigid portal frame integral welding design, featuring reasonable stress distribution, compact structure and strong operational stability. Equipped with dedicated container spreader, intelligent anti-sway system and full frequency conversion speed regulation system, the crane realizes efficient vertical lifting, flexible boom luffing and precise horizontal positioning of standard containers. With professional wind resistance, salt spray corrosion resistance and dust-proof design, it adapts to long-term high-frequency cyclic operation in harsh coastal port environments. It is high-efficiency and specialized core handling equipment for medium and small container terminals and freight yards.
Application Scenario
Container Single Boom Portal Crane is mainly applied in inland container terminals, small and medium-sized port wharves, logistics container yards, railway container stations and factory container freight zones. It is specially used for stacking, loading and unloading 20ft, 40ft standard containers and general containerized cargoes. It perfectly adapts to medium-frequency container turnover and short-distance transfer operations, meeting the efficient handling demands of port logistics, freight distribution and industrial container transportation.
Advantages
Container Single Boom Portal Crane has outstanding advantages of flexible operation, wide coverage and high cost performance. The optimized single boom design features large working radius and flexible luffing range, covering a wider operation area with smaller footprint compared with traditional double boom portal cranes. The lightweight rigid structure reduces self-weight and foundation investment, effectively lowering port civil engineering and equipment costs. The intelligent anti-sway and frequency conversion control system ensure stable container lifting, accurate positioning and neat stacking, greatly improving container handling efficiency and standardization. The professional salt spray anti-corrosion and wind-proof configuration adapts to long-term coastal open-air operation and extends equipment service life. With simple structural layout, low failure rate and convenient daily maintenance, it realizes low comprehensive operating cost. It can be customized according to container specifications and site conditions, providing efficient, stable and economical container handling solutions for medium and small port logistics industries.
Structural Diagram And Parameter Table
| Rated Lifting Capacity (Container Spreader) | 40 t, Customizable | Max Lifting Height | 42 m, Customizable |
| Span | 10.5 m, Customizable | Working Class | A6 |
| Lifting Speed (Rated Load) | 18 m/min | Lifting Speed (No Load) | 24 m/min |
| Slewing Speed | 0～1.0 r/min | Working Wind Pressure | 250 N/m² |
| Power Supply | Customizable | Control Mode | PLC variable frequency stepless speed regulation, cab operation + remote control |
| Working Ambient Temperature | -20～+45 ℃ | Max Wheel Load | ≤320 kN |
HOT PRODUCTS
CORE ADVANTAGES
1
HIGH QUALITY & STABLE PERFORMANCE
Built with premium materials and strict quality control, ensuring smooth and consistent operation even under heavy working conditions.
2
LONG SERVICE LIFE & LOW MAINTENANCE
Durable structural design reduces wear and tear, delivering long service life with minimal maintenance requirements.
3
HIGH EFFICIENCY & ENERGY SAVING
Optimized driving system ensures fast, responsive lifting while lowering energy consumption and operating costs.
4
HIGH SAFETY STANDARD & DURABLE STRUCTURE
Equipped with multiple safety devices and a rugged structure, providing reliable protection and long‑term durability.
5
CUSTOM DESIGN & FLEXIBLE SOLUTIONS
Fully customizable to different tonnages and working conditions, offering flexible lifting solutions for shipyards and marinas.
QUALIFICATION
FAQ for Container Single Boom Portal Crane
This FAQ covers common questions about Container Single Boom Portal Crane, including product characteristics, application scenarios and export supporting documents for quick customer reference.
What are the core advantages of container single boom portal crane?
Container Single Boom Portal Crane adopts lightweight single boom portal structure with small occupation area and low civil engineering requirements. It features flexible rotating operation, stable running performance and high handling efficiency, with simple structure and convenient daily maintenance.
Where is the container single boom portal crane commonly applied?
It is commonly applied in inland river terminals, small and medium ports, logistics yards and inland dry ports, undertaking container loading, unloading, stacking and transfer operations.
What export technical documents can you provide?
We can supply complete general layout drawings, factory acceptance test reports and relevant certification files. All technical documentation can be compiled to satisfy inspection standards of different destination regions.
