Grab-Type Ship-to-Shore Crane
Authentication mark:

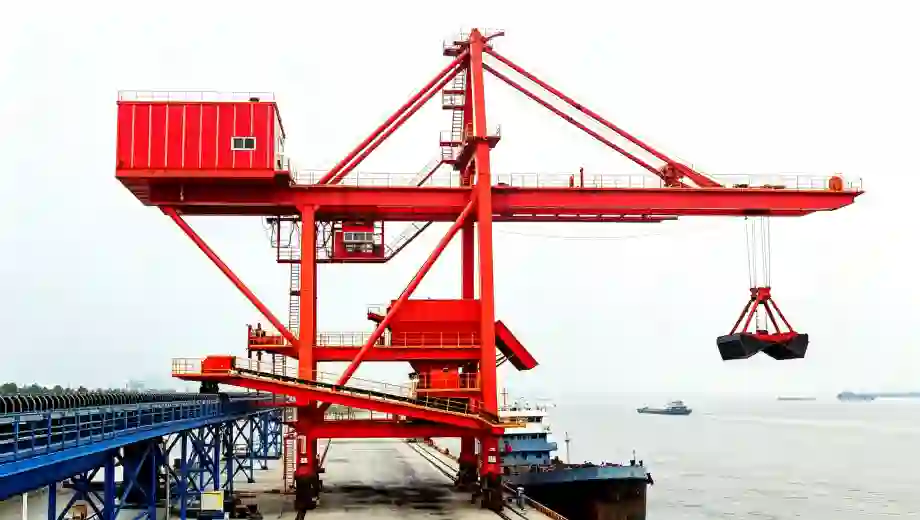

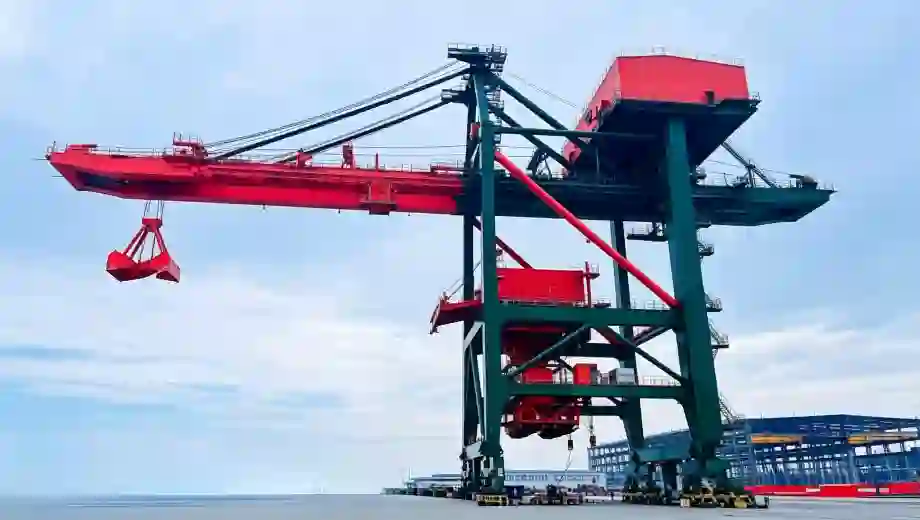

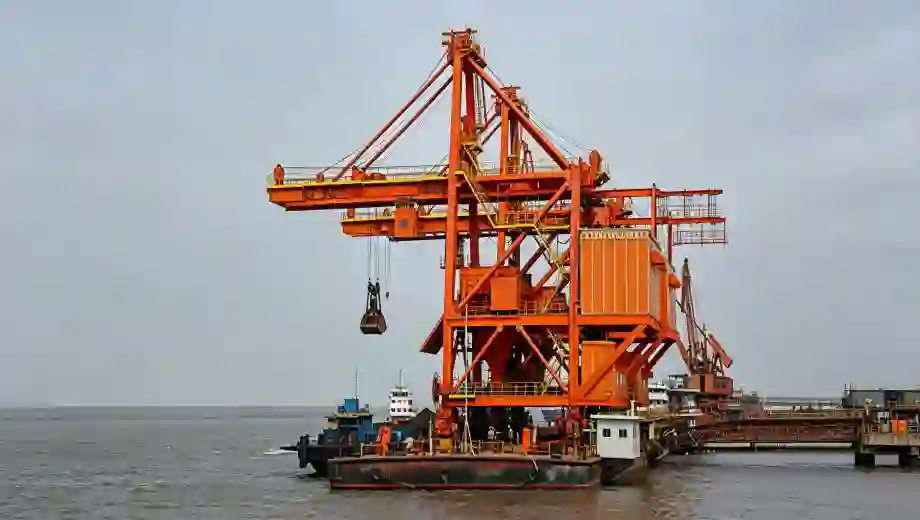

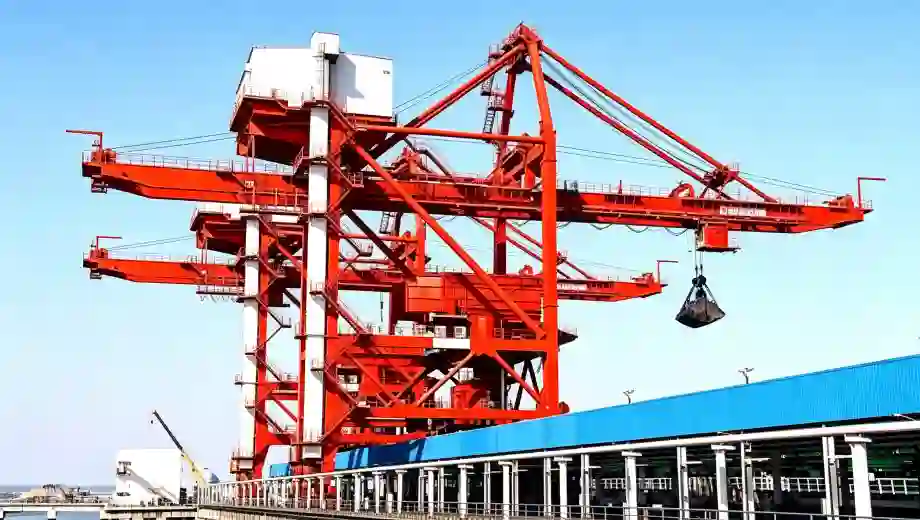

Grab-Type Ship-to-Shore Crane is deployed at seaports for loading and unloading bulk materials such as ore, coal and grain from vessels.
Capacity:
32 ~ 48 t, Customizable
Lifting Height:
30 ~ 42 m, Customizable
Span:
16 ~ 26 m, Customizable
Voltage/Hertz:
Customizable
Working Class:
A7
Get A Free Quote
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
Introduction
Grab-Type Ship-to-Shore Crane is a large professional port special crane dedicated for direct ship-to-shore bulk cargo unloading operations. Adopting super-rigid heavy-duty box girder structure and optimized shore-based gantry frame design, it features large spanning range, high lifting height and ultra-strong heavy-load capacity. Equipped with high-efficiency hydraulic grab system, intelligent anti-sway device and full frequency conversion integrated driving system, the crane realizes automatic grabbing, vertical lifting, horizontal transfer and rapid discharging of bulk materials from ship holds to shore yards. With customized salt spray anti-corrosion, wind resistance and rainproof structure, it adapts to long-term high-intensity continuous operation in harsh coastal wharf environments. As core terminal equipment for bulk port operation, it supports large-volume and high-speed ship unloading tasks.
Application Scenario
Grab-Type Ship-to-Shore Crane is exclusively applied in large coastal and inland river bulk cargo terminals. It is mainly used for professional ore terminals, coal unloading wharves, grain transit ports, mineral powder logistics bases and large industrial dedicated wharves. It focuses on ship unloading operations of coal, iron ore, grain, sand and gravel, chemical bulk materials and other loose cargoes. It adapts to all-weather seaside working conditions and large-tonnage ship berthing and unloading scenarios, meeting the ultra-large volume and high-efficiency material turnover demands of modern bulk port logistics.
Advantages
Grab-Type Ship-to-Shore Crane possesses prominent advantages of large handling capacity, high efficiency and excellent operational stability. The heavy-duty integral structure ensures strong bearing performance and small structural deformation, stably coping with long-term heavy-load ship unloading work. The high-performance grab bucket delivers large grabbing volume and high operation speed, effectively improving port single-shift throughput and shortening ship berthing time. The intelligent frequency conversion control and anti-sway system ensure smooth operation, accurate positioning and minimal material spilling, reducing cargo loss and improving operation safety. Professional marine-grade anti-corrosion and wind-proof configuration effectively resists coastal salt fog and strong wind, greatly extending equipment service life. Featuring high automation level, low failure rate and centralized convenient maintenance, it cuts comprehensive port operation costs. It provides reliable, high-efficiency and large-capacity ship-to-shore bulk handling solutions for modern large-scale bulk terminals.
Structural Diagram And Parameter Table
| Rated Lifting Capacity (Grab) | 32 ~ 48 t, Customizable | Max Lifting Height | 30 ~ 42 m, Customizable |
| Span | 16 ~ 26 m, Customizable | Working Class | A7 |
| Grab Volume | 10 ~ 18 m³ | Hoisting Speed | 13 ~ 17 m/min |
| Power Supply | Customizable | Total Installed Power | 650 ~ 900 kW |
| Total Crane Weight | 950 ~ 1300 t | Operating Temperature | -20 ℃ ~ +45 ℃ |
| Applicable Bulk Cargo | Ore, coal, grain, bauxite | Control Mode | PLC variable frequency control, cabin operation + remote monitoring |
HOT PRODUCTS
CORE ADVANTAGES
1
HIGH QUALITY & STABLE PERFORMANCE
Built with premium materials and strict quality control, ensuring smooth and consistent operation even under heavy working conditions.
2
LONG SERVICE LIFE & LOW MAINTENANCE
Durable structural design reduces wear and tear, delivering long service life with minimal maintenance requirements.
3
HIGH EFFICIENCY & ENERGY SAVING
Optimized driving system ensures fast, responsive lifting while lowering energy consumption and operating costs.
4
HIGH SAFETY STANDARD & DURABLE STRUCTURE
Equipped with multiple safety devices and a rugged structure, providing reliable protection and long‑term durability.
5
CUSTOM DESIGN & FLEXIBLE SOLUTIONS
Fully customizable to different tonnages and working conditions, offering flexible lifting solutions for shipyards and marinas.
QUALIFICATION
FAQ for Grab-Type Ship-to-Shore Crane
This FAQ covers common questions about Grab-Type Ship-to-Shore Crane, including product characteristics, application scenarios and export supporting documents for quick customer reference.
What are the core features of grab-type ship-to-shore crane?
This crane is specially optimized for bulk cargo ship unloading. Equipped with professional grab lifting system and four-link luffing structure, it features small material spilling rate, anti-sway performance and high continuous operation efficiency, perfectly adapting to frequent ship berthing and unloading work.
What cargoes and scenarios is this crane suitable for?
It is mainly used for seaport bulk cargo terminals, widely applied for grabbing and unloading coal, grain, mineral ore, sand and cement bulk materials from large and medium-sized cargo ships.
What export technical documents can you provide?
We can supply complete general layout drawings, factory acceptance test reports and relevant certification files. All technical documentation can be compiled to satisfy inspection standards of different destination regions.
