Container Straddle Carrier
Authentication mark:
Container Straddle Carrier is mainly used in container terminals and port yards for container stacking, transporting and handling operations.
Capacity:
35 ~ 50 t, Customizable
Lifting Height:
10 ~ 14 m, Customizable
Span:
5.8 ~ 6.5 m(Wheel Gauge), Customizable
Voltage/Hertz:
Customizable
Working Class:
A6 ~ A7
Get A Free Quote
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
Introduction

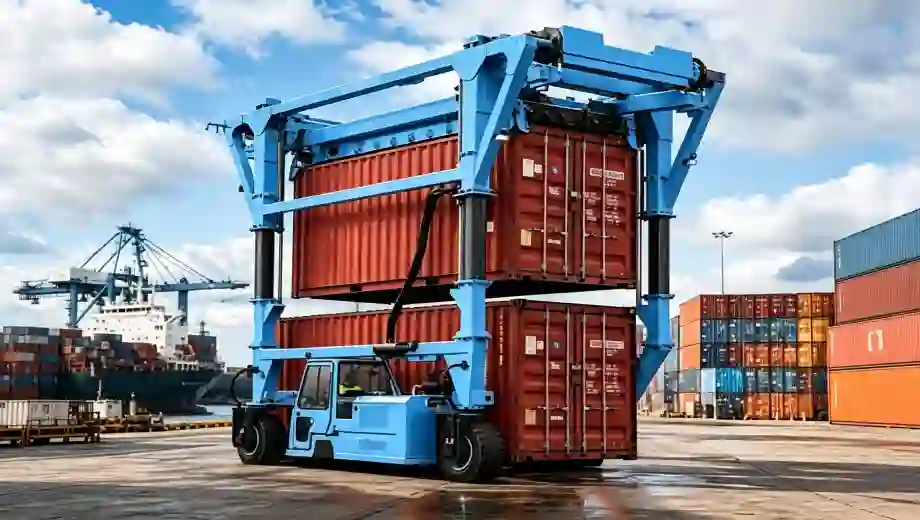

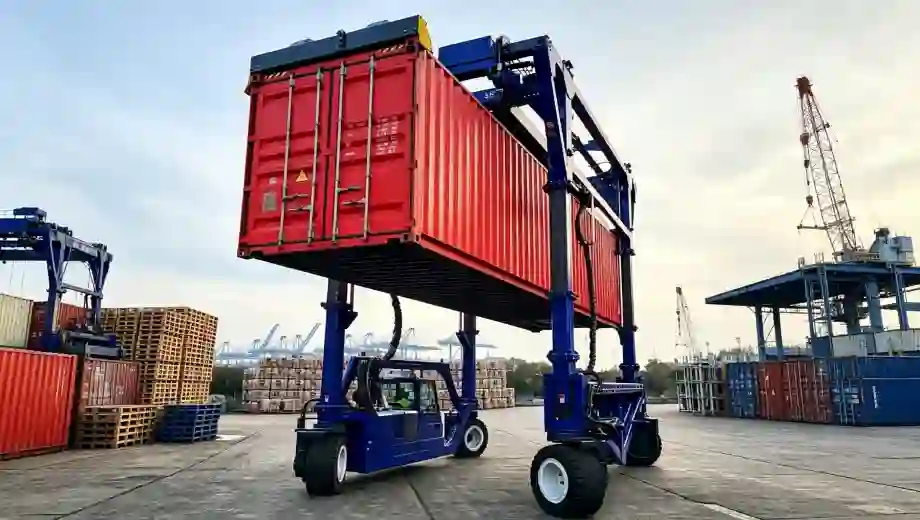

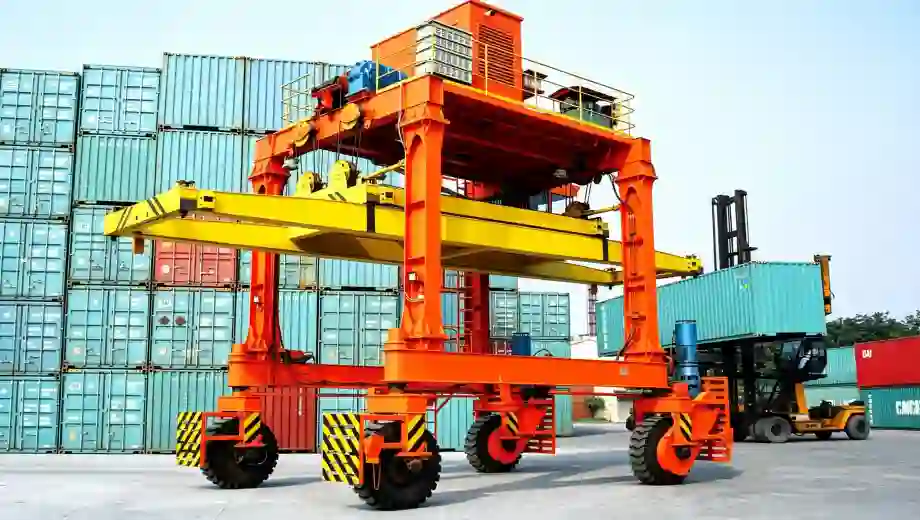

Container Straddle Carrier is a highly flexible self-propelled port handling vehicle specially designed for rapid container transportation and stacking. Adopting high-strength portal frame structure and intelligent hydraulic lifting system, it features ultra-flexible travelling and steering performance without fixed rails. Equipped with dedicated container spreader, intelligent anti-sway system and precise hydraulic control system, it realizes automatic picking, lifting, transferring and stacking of standard containers. With heavy-duty tire design, all-terrain adaptability and full waterproof and dust-proof configuration, it supports long-term, high-frequency and all-weather cyclic operation in container yards, serving as efficient and flexible core logistics equipment for modern port terminals.
Application Scenario
Container Straddle Carrier is widely used in container terminals, port stacking yards, inland container depots, railway container stations and large logistics parks. It is mainly responsible for horizontal transportation, yard arrangement and multi-layer stacking of 20ft, 40ft and other standard containers. It is perfectly suitable for flexible container turnover, yard tidying and container loading and unloading between gantry cranes and storage areas. It adapts to complex yard pavement and high-efficiency logistics scheduling scenarios, meeting fast and flexible container handling demands of modern port logistics.
Advantages
Container Straddle Carrier boasts core advantages of high flexibility, high efficiency and low site dependency. Different from rail-fixed cranes, it realizes free travelling and omnidirectional steering, greatly improving operation flexibility and yard utilization without laying fixed rails. The intelligent hydraulic lifting and anti-sway system ensure stable container lifting and accurate stacking, effectively avoiding cargo collision and displacement. It supports multi-layer container stacking, maximizing vertical space utilization of the container yard. Featuring strong terrain adaptability, low noise and low fuel consumption, it delivers stable all-weather operation. With compact structure, flexible scheduling and easy maintenance, it greatly improves container turnover efficiency and reduces terminal operation costs, providing optimal flexible handling solutions for modern container logistics terminals.

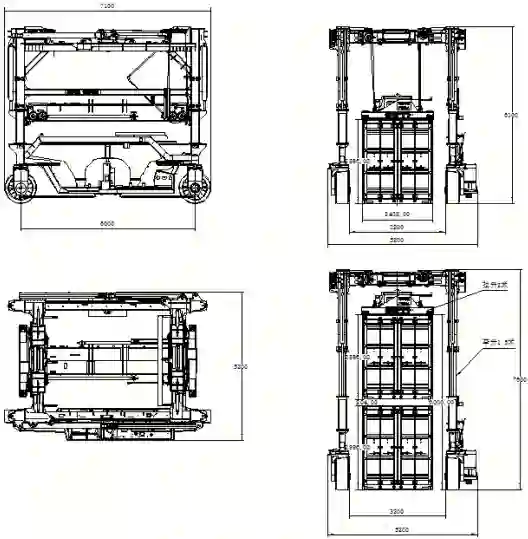

Structural Diagram And Parameter Table
| Rated Lifting Capacity | 35 ~ 50 t, Customizable | Max Lifting Height | 10 ~ 14 m, Customizable |
| Span (Wheel Gauge) | 5.8 ~ 6.5 m(Wheel Gauge), Customizable | Working Class | A6 ~ A7 |
| Lifting Speed | 0.3 ~ 0.6 m/s | Engine Rated Power | 220 ~ 280 kW |
| Loaded Travel Speed | 15 ~ 20 km/h | Unloaded Travel Speed | 22 ~ 28 km/h |
| Working Temperature | -20 ℃ ~ +50 ℃ | Design Standard | ISO 10368, GB/T 3811, FEM standard |
| Main Safety Devices | Overload protection, anti-collision device, travel limit, emergency stop, tire pressure monitoring | Power | Customizable |
HOT PRODUCTS
CORE ADVANTAGES
1
HIGH QUALITY & STABLE PERFORMANCE
Built with premium materials and strict quality control, ensuring smooth and consistent operation even under heavy working conditions.
2
LONG SERVICE LIFE & LOW MAINTENANCE
Durable structural design reduces wear and tear, delivering long service life with minimal maintenance requirements.
3
HIGH EFFICIENCY & ENERGY SAVING
Optimized driving system ensures fast, responsive lifting while lowering energy consumption and operating costs.
4
HIGH SAFETY STANDARD & DURABLE STRUCTURE
Equipped with multiple safety devices and a rugged structure, providing reliable protection and long‑term durability.
5
CUSTOM DESIGN & FLEXIBLE SOLUTIONS
Fully customizable to different tonnages and working conditions, offering flexible lifting solutions for shipyards and marinas.
QUALIFICATION
FAQ for Container Straddle Carrier
This FAQ covers common questions about Container Straddle Carrier, including product characteristics, application scenarios and export supporting documents for quick customer reference.
What are the prominent features of container straddle carrier?
It adopts high‑strength frame structure, flexible rubber‑tyre traveling system and high container stacking capacity. It integrates transportation and lifting functions, realizing independent container handling without relying on fixed track facilities.
Where is the container straddle carrier widely deployed?
It is widely used in container terminals, inland container yards and logistics depots, responsible for container stacking, horizontal transportation and container handover operations.
What export supporting documents can you provide for this equipment?
We can supply complete general layout drawings, factory acceptance test reports, material certificates and relevant certification files. All technical documentation can be compiled to meet international project requirements.
