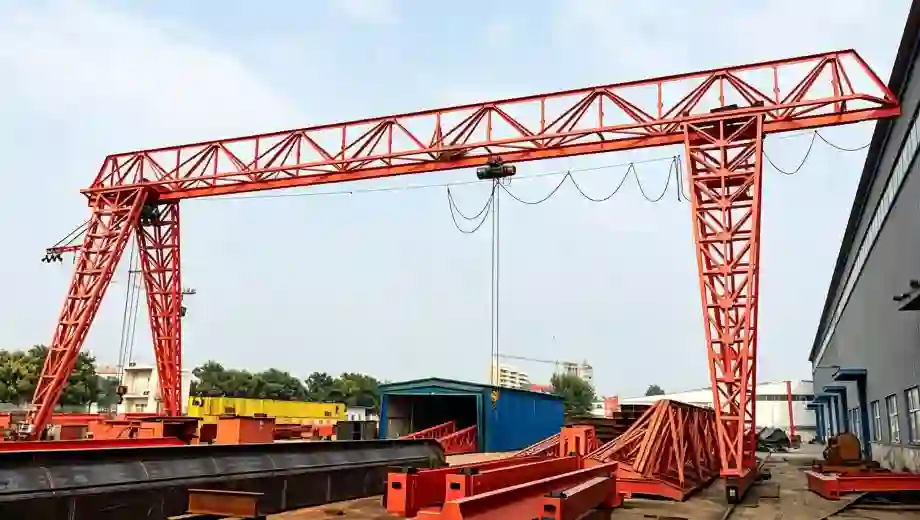

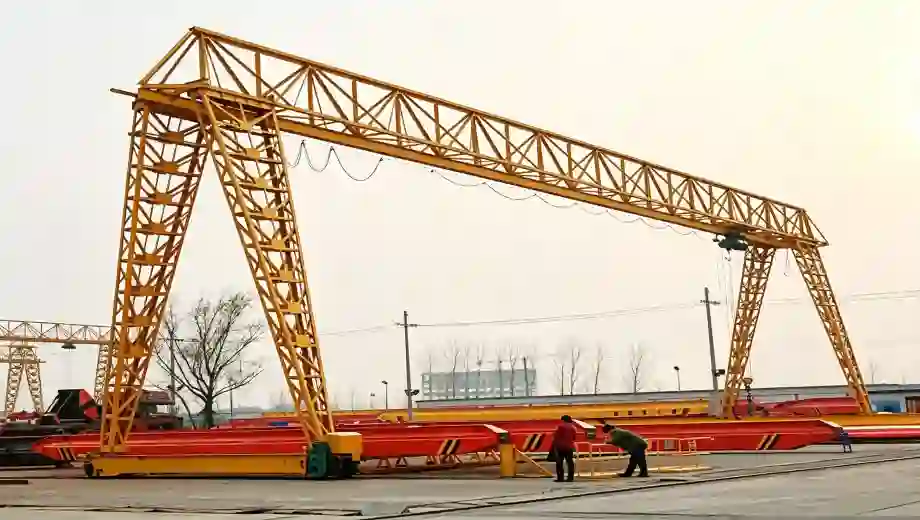

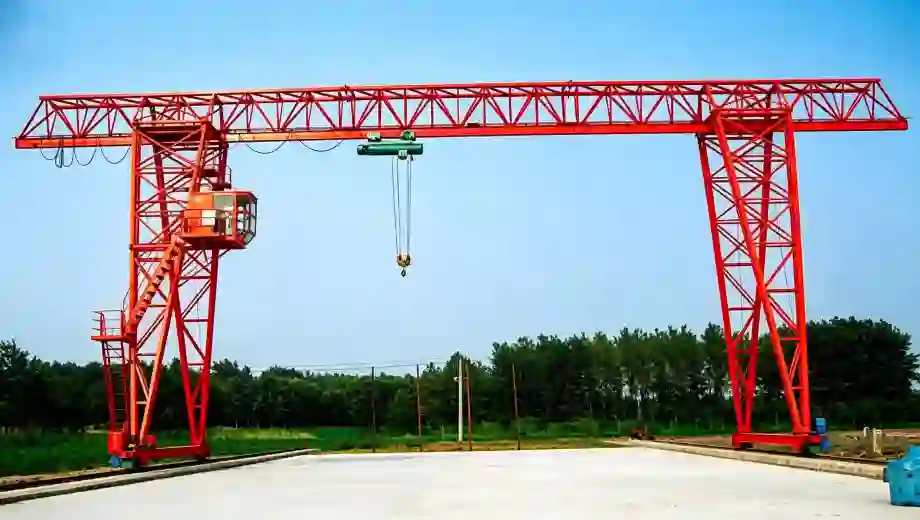

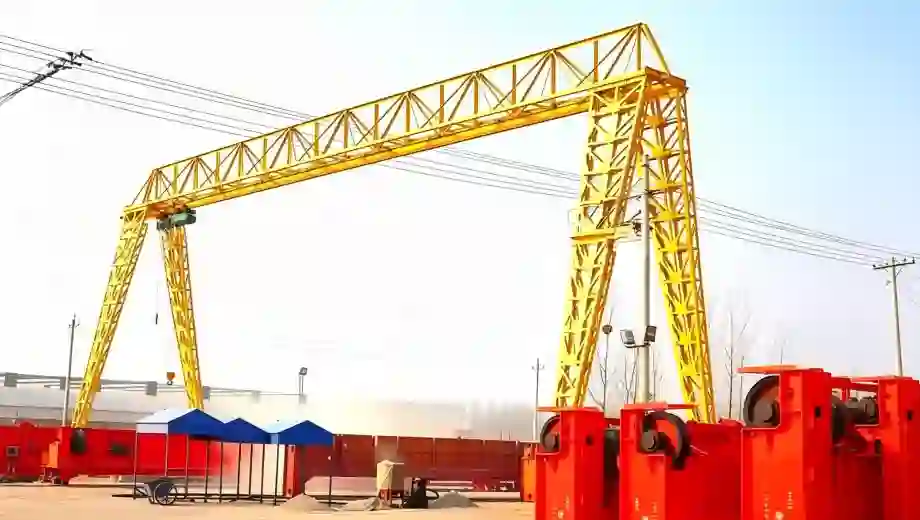

Truss Gantry Crane
Authentication mark:
Truss Gantry Crane is widely used in construction sites, material yards, steel processing plants and outdoor heavy‑duty material handling occasions.
Capacity:
3-100t, Customizable
Lifting Height:
9 ~ 24 m, Customizable
Span:
12-40m, Customizable
Voltage/Hertz:
Customizable
Working Class:
A3 ~ A5
Get A Free Quote
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
Introduction
Truss Gantry Crane is a lightweight and high-stability outdoor lifting equipment featured with lattice truss beam and leg structure. Different from conventional box-beam gantry cranes, its hollow truss design greatly reduces dead weight while maintaining high overall rigidity and structural stability. Equipped with standard electric hoist, frequency conversion speed regulation system and complete outdoor safety devices, it realizes stable vertical lifting, trolley traversing and whole crane travelling. With excellent wind resistance, simple mechanical layout and flexible operation performance, it is designed for long-term cyclic outdoor handling work and serves as an economical and practical general-purpose gantry crane for various industrial yards.
Application Scenario
Truss Gantry Crane is widely applicable for light and medium-duty outdoor operation scenarios. It is commonly used in stone factories, steel stockyards, construction sites, logistics yards, railway freight stations and small and medium-sized factory outdoor storage areas. It is mainly responsible for lifting, stacking and transferring steel materials, stone blocks, construction accessories and general industrial cargoes. It is especially suitable for open windy sites and projects with limited foundation bearing capacity, meeting daily high-frequency and medium-light load handling demands.
Advantages
Truss Gantry Crane has core advantages of light weight, strong wind resistance, low cost and convenient installation. The optimized lattice truss structure effectively reduces overall self-weight and wheel pressure, lowering requirements for ground foundation and civil engineering cost. The hollow breathable design greatly improves wind resistance performance, making it safer for long-term outdoor open-air operation. It adopts simple and mature structural design with fewer consumables, featuring lower equipment cost and higher cost performance compared with box-type gantry cranes. The whole machine is easy to install, disassemble and transport, with low failure rate and simple daily maintenance. Supporting flexible span and lifting height customization, it provides economical, stable and efficient outdoor lifting solutions for small and medium industrial enterprises.
Structural Diagram And Parameter Table
| Rated Lifting Capacity | 3-100t, Customizable | Max Lifting Height | 9 ~ 24 m, Customizable |
| Span | 12-40m, Customizable | Working Class | A3 ~ A5 |
| Working Voltage | Customizable | Main Structure | Full truss welded structure, lightweight & high wind resistance |
| Hoisting Speed | 8 ~ 14 m/min | Max Wheel Load | ≤220 kN |
| Working Wind Pressure | 200 N/m² | Operating Temperature | -15℃ ~ +40℃ |
| Cantilever Length | 3 ~ 8 m | Application | Outdoor construction, windy area operation |
HOT PRODUCTS
CORE ADVANTAGES
1
HIGH QUALITY & STABLE PERFORMANCE
Built with premium materials and strict quality control, ensuring smooth and consistent operation even under heavy working conditions.
2
LONG SERVICE LIFE & LOW MAINTENANCE
Durable structural design reduces wear and tear, delivering long service life with minimal maintenance requirements.
3
HIGH EFFICIENCY & ENERGY SAVING
Optimized driving system ensures fast, responsive lifting while lowering energy consumption and operating costs.
4
HIGH SAFETY STANDARD & DURABLE STRUCTURE
Equipped with multiple safety devices and a rugged structure, providing reliable protection and long‑term durability.
5
CUSTOM DESIGN & FLEXIBLE SOLUTIONS
Fully customizable to different tonnages and working conditions, offering flexible lifting solutions for shipyards and marinas.
QUALIFICATION
FAQ for Truss Gantry Crane
This FAQ covers common questions about Truss Gantry Crane, including product characteristics, structural advantages and application scenarios for quick customer reference.
What are the structural advantages of truss gantry crane?
The truss‑type structure features light dead weight, strong wind resistance and good overall stability. It effectively reduces wind load impact and lowers requirements for foundation bearing capacity.
In which working scenarios is truss gantry crane widely deployed?
It is mostly applied in outdoor open‑air sites such as material yards, stone processing factories and construction sites, especially for locations with strong wind weather conditions.
What are the key points for daily use of truss gantry crane?
Regular inspection of truss welding joints and connecting fasteners is required. Wind‑proof anchoring devices shall be deployed when the crane is out of service to avoid safety risks caused by strong wind.
